Series: L32A-XS electric
Engine: electric
Engine power: 225 kW
Battery capacity: 3 × 66 kWh
Range: up to 130 km
Transmission: automatic, 2-speed
Vehicle dimensions: 10000 × 2500 × 3400 mm
Permissible maximum weight: 18000 kg
Wheelbase: 4750 mm
Jacking system type: horizontal-vertical, infinitely variable
Jacking width: min. 2,50 m, max. 4,65 m
Ladder set: fully automatic, 5 sections, with articulated top ladder section (4,35 m long)
Maximum working height: 32 m
Cage floor height: 30 m
Nominal rescue height: 23 m
Nominal outreach: 12 m
Maximum stand-up angle: 75°
Lifting capacity at the base ladder section: up to 4000 kg
Lifting capacity at the ladder tip: up to 650 kg

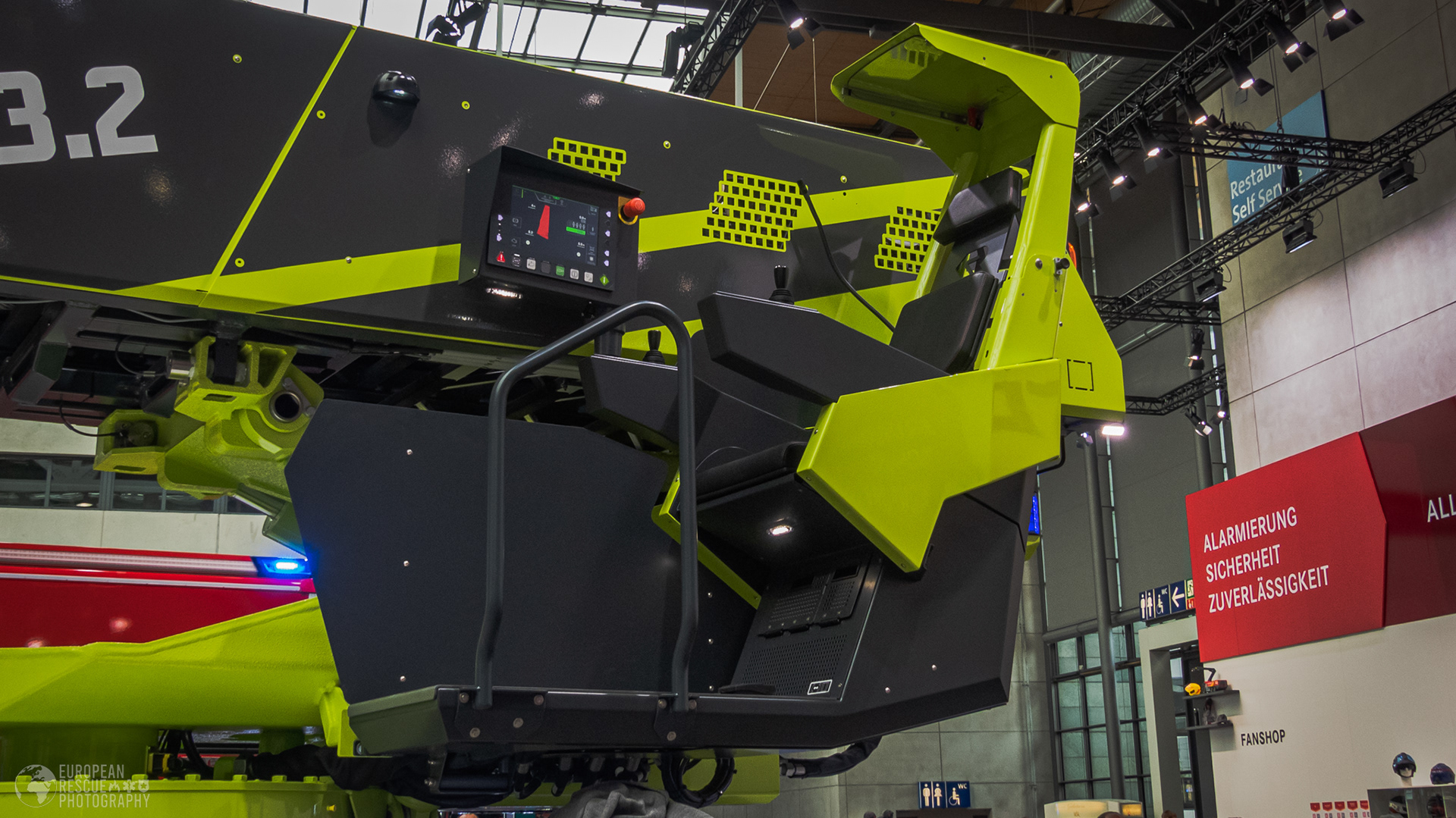

Rescue cage: HR-500 MF, removable multifunction column
Rescue cage capacity: 500 kg (5 persons)
Water monitor: Rosenbauer RM15, remote-controlled from the main control panel and the cage
Water monitor capacity: 2000 l/min
Stretcher support capacity: 300 kg
